双圣五金旗舰店





![]() | |||||||||||||||

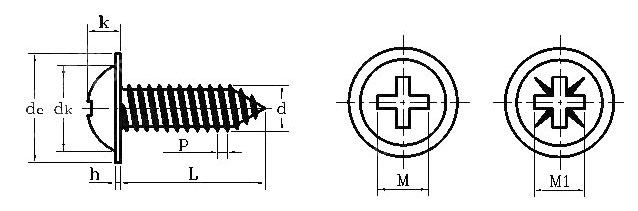

| 对公差特别在意者慎拍,实物为准单位:mm | |||||||||||||||
| 螺纹规格 | M1.4 | M1.7 | M2 | M2.3 | M2.6 | M3 | M4 | ||||||||
| 螺纹直径d | 1.4 | 1.7 | 2 | 2.3 | 2.6 | 3 | 4 | ||||||||
| 头部直径dk | 3.56 | 3.8 | 3.99 | 4.05 | 5.08 | 6.67 | |||||||||
| 垫圈直径dc | 4 | 5 | 5.0 | 6.0 | 6 .5 | 6.95 | 8.51 | ||||||||
| 头部厚度k | 1.03 | 1.30 | 1.41 | 1.79 | 2.53 | 3.17 | |||||||||





| 化学成分,%,max | ||||||||||
| 组别 | C | Si | Mn | P | S | Cr | Mo | Ni | Cu | 特性 |
| 304-A2 | 0.1 | 1 | 2 | 0.05 | 0.03 | 15-20 | 8-19 | 4 | 加工硬化率适中,适于一般的冷间加工以及伸抽,冷加工性能较好,普遍用于外六角螺钉、螺母以及垫圈产品 | |
| 316-A4 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18.5 | 2-3 | 10-15 | 1 | 加钼,耐腐蚀能力较304强,特别适用于海水及化学介质,更加的耐腐蚀性及耐孔蚀性。 |
注: 1)如镍含量低于8%,则锰的含量必须为5% | ||||||||||
| 机械性能 | |||||||||||
| 类别 | 组别 | 性能等级 | 螺丝直径 | 抗拉强度mpa/mm2 | 规定非比列伸长应为mpa/mm2 | 断后伸长量mpa/mm2 | |||||
| 奥氏体 | A2,A4 | 50 | ≤ 39 | 500 | 210 | 0.6d | |||||
| 70 | ≤ 24 | 700 | 450 | 0.4d | |||||||
| 80 | ≤ 24 | 800 | 600 | 0.3d | |||||||


| 问题1 | 1.不锈钢为什么也会带磁性?304不锈钢属于奥氏体不锈钢,奥氏体在冷加工过程中有部分或少量转化为马氏体 |
| 问题2 | 2.如何识别正宗304不锈钢产品?①支持304不锈钢专用检测药水检测,如果不变色为正宗304不锈钢。 |
| 问题3 | 3.常用不锈钢有那几种?①.201不锈钢,适合在干燥环境中使用,遇水很容易水生锈。 |
| Parameter information | |
| Brand | DOUBLE SHENG |
| Color Options | M1.7*4(50 pcs) M1.7*5(50 pcs) M1.7*6(50 pcs) M1.7*8(50 pcs) M1.7*10(50 pcs) M2*4(50 pcs) M2*5(50 pcs) M2*6(50 pcs) M2*8(50 pcs) M2*10(50 pcs) M2.3*5(50 pcs) M2.3*6(50 pcs) M2.3*8(50 pcs) M2.3*10(50 pcs) M2.3*12(50 pcs) M2.6*6(50 pcs) M2.6*8(50 pcs) M2.6*10(50 pcs) M2.6*12(50 pcs) M3*6(50 pcs) M3*8(50 pcs) M3*10(50 pcs) M3*12(50 pcs) M3*14(50 pcs) M3*16(50 pcs) M3*20(50 pcs) M4*8(50 pcs) M4*10(50 pcs) M4*12(50 pcs) M4*16(50 pcs) M4*20(50 pcs) M4*25(50 pcs) M4*30(50 pcs) |

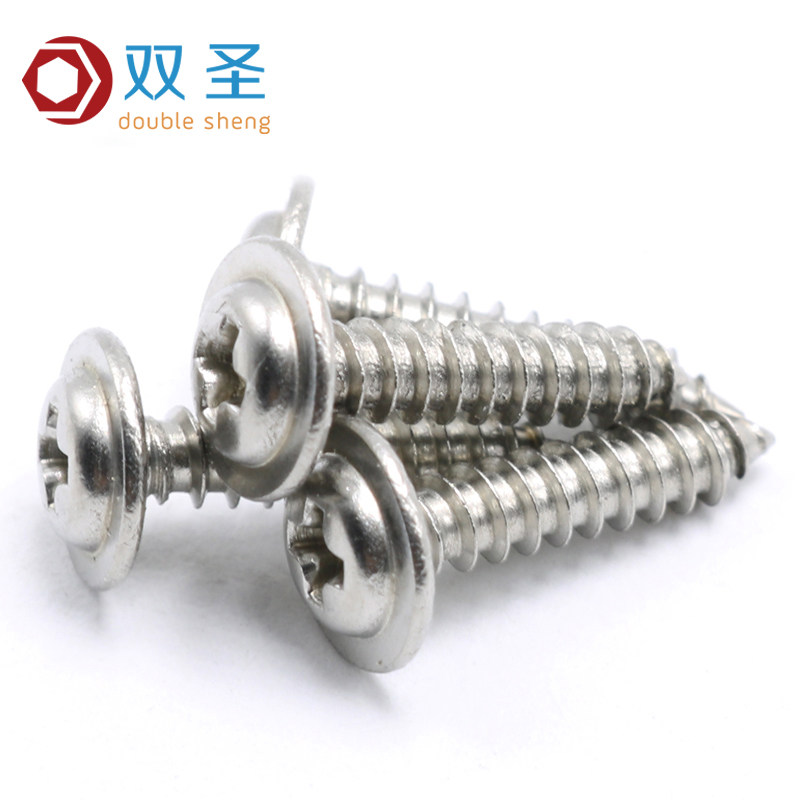

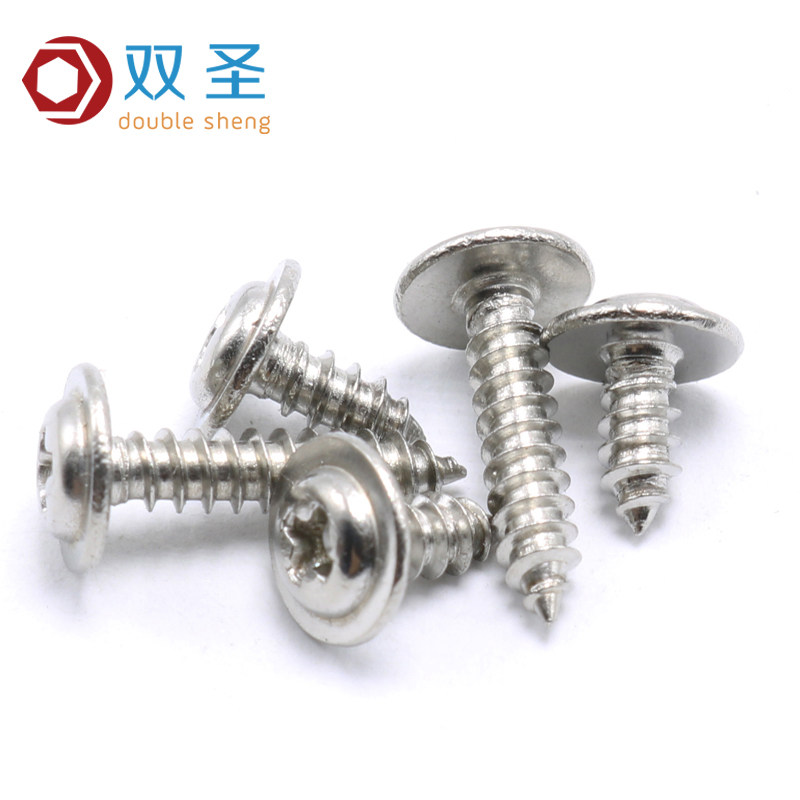

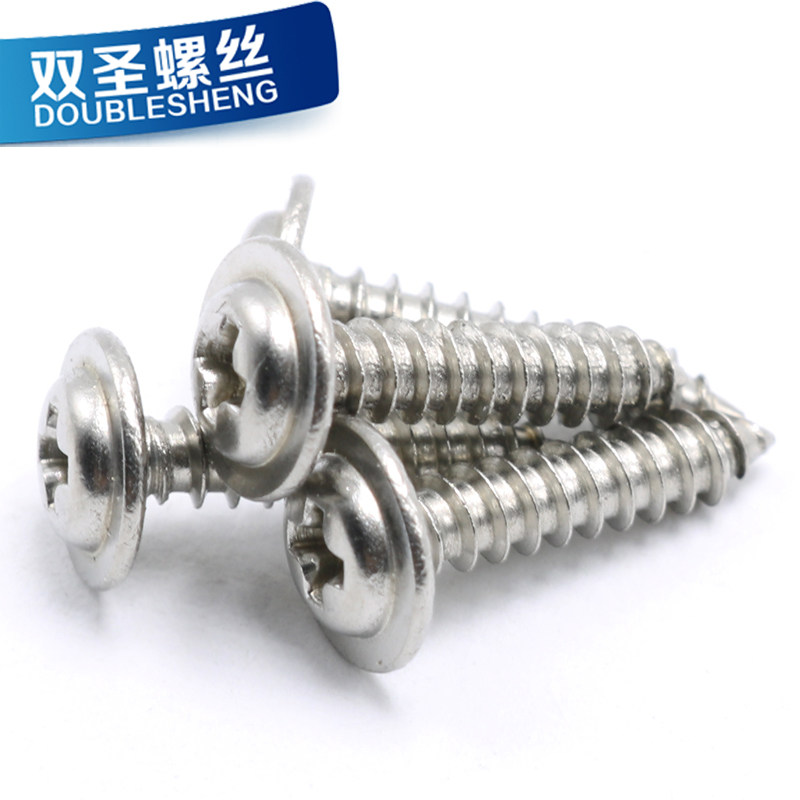

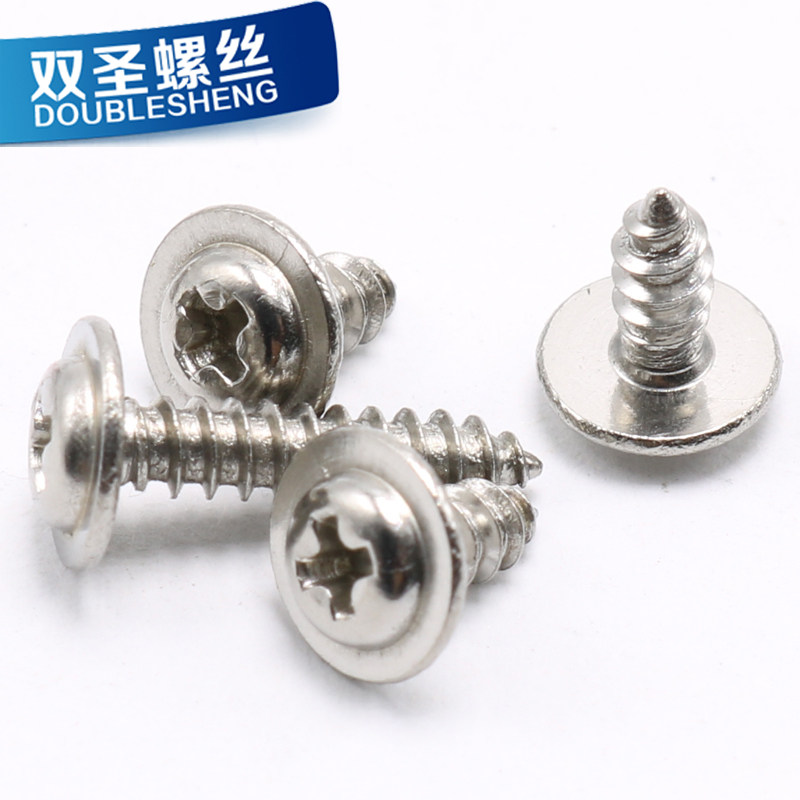

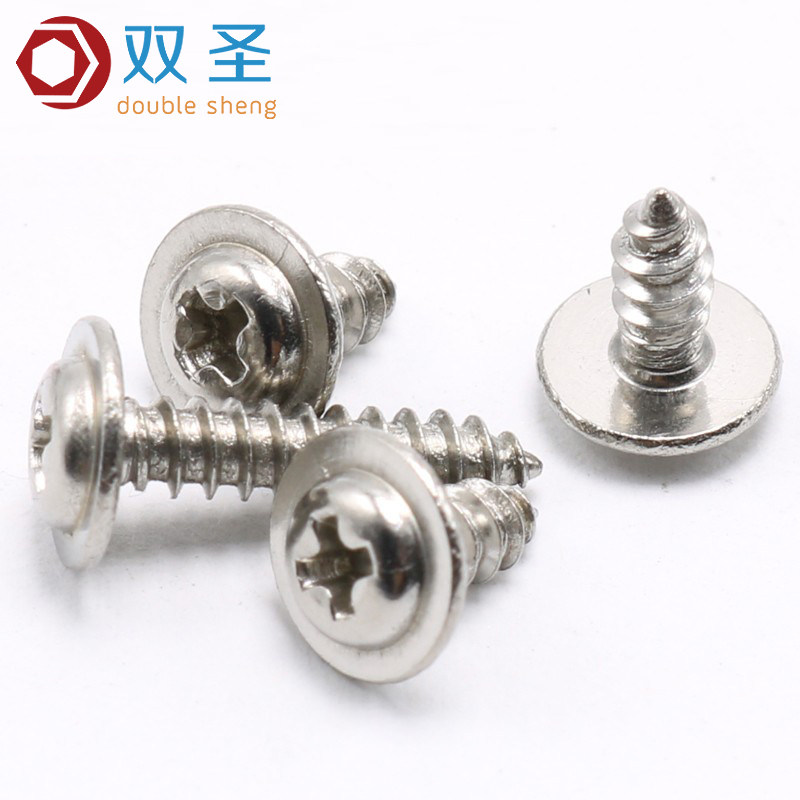

| Model | 304 Stainless Steel Self-tapping Screws with Washer |
| Material | 304 Stainless Steel |
| Standard Type | National Standard |
| Head Type | Round Pan Cross Head with Washer |
| Category | Self-tapping Screws |
